Low Precision RL

A common failure mode in MoE RL is precision drift between training and inference. Pipelines that train in BF16 and serve in FP8 accumulate per-layer numerical disagreement, which compounds into divergent log-probabilities and gradients pointing in unintended directions. Miles supports a unified low-precision path where rollout and training share the same quantization logic on the forward pass. The same path is wired up for three formats today — block-wise FP8, MXFP8, and NVFP4 — plus the lower-friction “BF16 train + FP8 inference” mode that’s useful when standing up a new model architecture.

Choose a precision

Format	Block layout	Hardware	Models tested	Maturity
BF16	—	All NVIDIA + AMD MI300X / MI325 / MI350 / MI355X	All	Baseline
FP8 block-wise (DeepSeek-style)	128×128, FP32 scales	Hopper (H100 / H200), Blackwell (B200+)	Qwen3-4B, Qwen3-30B-A3B	Generally available
MXFP8	1×32, UE8M0 scales	Blackwell only (B200, B300, GB200, GB300)	Qwen3-30B-A3B, DeepSeek-V3.2	Beta
NVFP4 (E2M1)	1×16, two-level (FP8 + FP32) scales	Blackwell only (B200, B300, GB200, GB300)	Qwen3-30B-A3B	Beta

Rollout × training compatibility

Each row is a rollout (inference) precision; each column is the trainer’s forward precision. ✅ = supported; ✗ = not supported.

Rollout \ Train	BF16	FP8 block-wise	MXFP8	NVFP4
BF16	✅ baseline	✗	✗	✗
FP8 block-wise	✅	✅ Hopper + Blackwell	✗	✗
MXFP8	✅	✗	✅ Blackwell	✗
NVFP4	✗	✗	✗	✅ Blackwell

The reference script (scripts/run_qwen3_30b_a3b.py) allows only one rollout precision and one training precision at a time. Use paired rollout and training flags for the end-to-end MXFP8 and NVFP4 recipes below.

Unified training recipe

Stage	Typical pipeline	Miles unified low-precision
Rollout (forward)	FP8 / MXFP8 / NVFP4 GEMM	Matching low-precision GEMM
Trainer (forward)	BF16 GEMM	Matching low-precision GEMM
Trainer (backward)	BF16 grads	Recipe-specific precision
Optimizer	BF16 master	Higher-precision master weights

The precision contract covers checkpoint conversion, the trainer forward pass, SGLang rollout, and live weight export. High-precision tensor exceptions must match across all four stages.

Modes

1. BF16 train + FP8 inference

The lowest-friction path. SGLang loads FP8 weights while the trainer keeps a BF16 torch_dist checkpoint. There is precision drift between the two paths; on MoE workloads, pair this with R3 (and optionally TIS).

hf download Qwen/Qwen3-30B-A3B-FP8 --local-dir /root/Qwen3-30B-A3B-FP8

CKPT_ARGS=(
   --hf-checkpoint /root/Qwen3-30B-A3B-FP8        # FP8 weights for SGLang
   --ref-load      /root/Qwen3-30B-A3B_torch_dist  # BF16 torch_dist for trainer
)

Reference recipe: examples/infra_features/low_precision/run-qwen3-4b-fp8.sh — single-node Qwen3-4B. It serves an FP8 checkpoint to SGLang and trains from a BF16 torch_dist checkpoint; it sets no --fp8-recipe, so the trainer forward stays BF16.

2. Unified block-wise FP8 (DeepSeek-style)

Rollout and training share the same block-wise FP8 quantization. This is the recipe to use on Hopper, and the layout DeepSeek ships its FP8 checkpoints in. Block layout is 128×128 with FP32 scales.

--transformer-impl transformer_engine
--bf16
--fp8-format e4m3
--fp8-recipe blockwise

# Optional, for MoE numerical stability
--use-tis

Flag	Effect
`--transformer-impl transformer_engine`	Routes Megatron’s forward through TransformerEngine so FP8 GEMM is engaged.
`--fp8-format e4m3`	Forward FP8 format used by TransformerEngine.
`--fp8-recipe blockwise`	128×128 block-wise quantization; sglang must serve weights in the matching layout.
`--use-tis`	Truncated Importance Sampling for residual precision drift.

NVTE_FP8_BLOCK_SCALING_FP32_SCALES is set for you in the actor env (miles/ray/train/actor_factory.py), defaulting by hardware: 1 on Hopper, and 0 on Blackwell, where TransformerEngine emulates the block-wise recipe with MXFP8 and needs power-of-two scales. Override it only if you know you want the non-default for your GPU. For models that already ship 128×128 block-wise FP8 weights (DeepSeek-V3.2, Qwen/Qwen3-30B-A3B-FP8), point --hf-checkpoint at the block-wise FP8 directory and let SGLang autodetect. Otherwise convert with tools/convert_hf_to_fp8.py. For MoE workloads, also consider --use-rollout-routing-replay (R3). The canonical recipe leaves it commented out by default but the flag is available. Reference recipe: examples/infra_features/low_precision/run-qwen3-30b-a3b-fp8-two-nodes.sh — two-node Qwen3-30B-A3B.

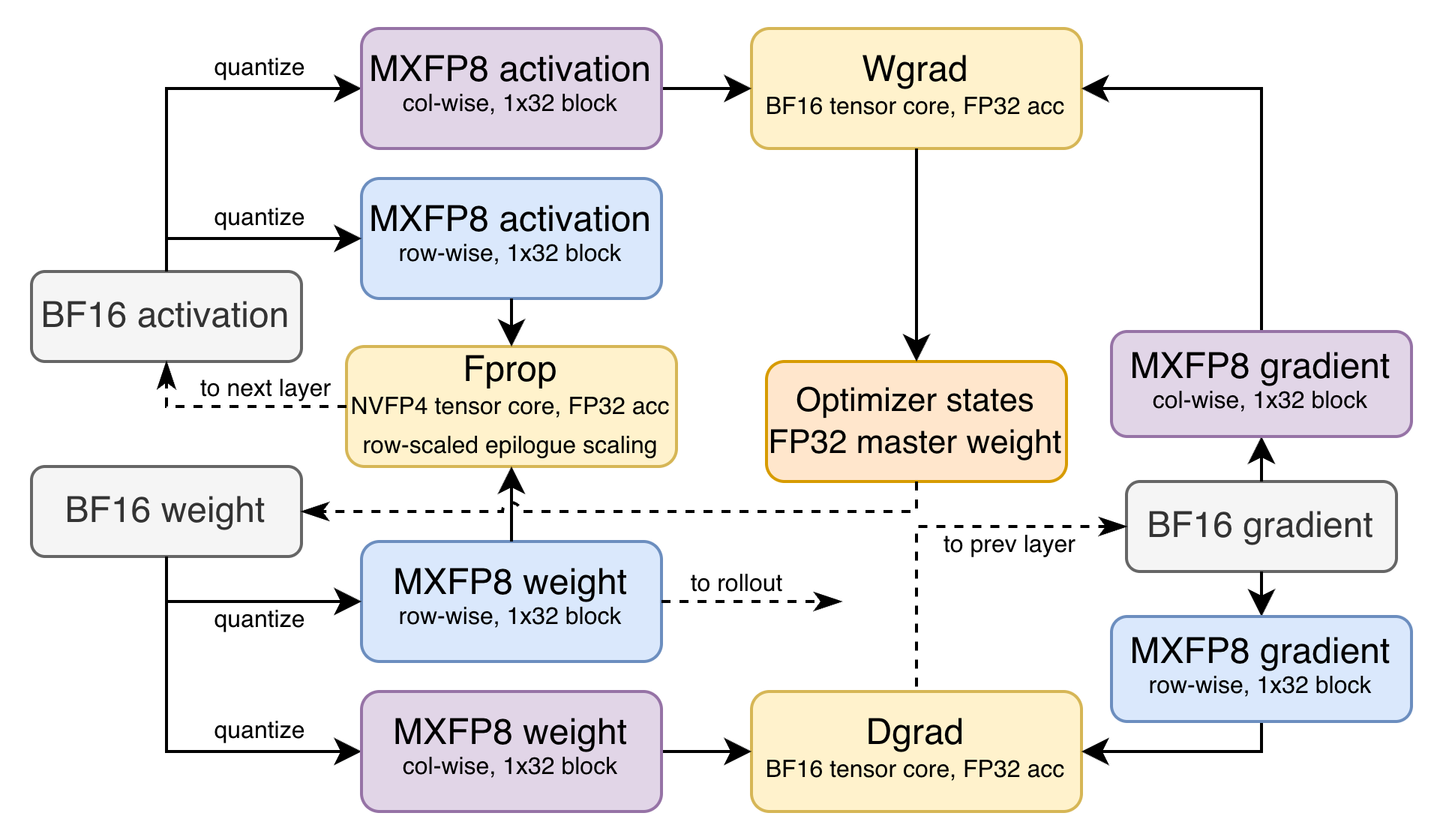

3. Unified MXFP8 (Blackwell)

MXFP8 uses one-dimensional microscaling blocks: 32 consecutive E4M3 values share one UE8M0 scale. The end-to-end recipe uses MXFP8 for rollout, forward propagation, weight-gradient GEMMs, and data-gradient GEMMs while preserving configured tensors in BF16.

Hardware: B200, B300, GB200, or GB300. The Qwen3-30B-A3B launcher prepares the MXFP8 Hugging Face checkpoint and configures both sides of the RL loop:

python scripts/run_qwen3_30b_a3b.py prepare \
  --hardware B200 \
  --rollout-mxfp8 \
  --train-mxfp8

python scripts/run_qwen3_30b_a3b.py execute \
  --hardware B200 \
  --rollout-mxfp8 \
  --train-mxfp8

The training path uses:

--transformer-impl transformer_engine
--bf16
--fp8-format e4m3
--fp8-recipe mxfp8

SGLang selects the MoE and dense linear GEMM backends independently. Common MXFP8 choices are:

Workload	Miles flag	Backends
MoE	`--sglang-moe-runner-backend`	`flashinfer_trtllm_routed`, `flashinfer_trtllm`, `cutlass`
Dense linear GEMM	`--sglang-fp8-gemm-backend`	`flashinfer_trtllm`, `flashinfer_cutlass`, `triton`

Choose the pair that matches the model, parallel layout, and installed SGLang stack. Convert a checkpoint outside the launcher with:

python tools/convert_hf_to_mxfp8.py \
  --model-dir /root/models/Qwen3-30B-A3B \
  --save-dir /root/models/Qwen3-30B-A3B-MXFP8

The converter records a 1x32 weight block and UE8M0 scale layout. It excludes norms, embeddings, routers, and configured high-precision tensors. Low-precision parameter gather is not enabled in the reference recipe, so a higher-precision master weight copy remains present during training.

4. NVFP4 (Blackwell)

NVFP4 stores E2M1 values in 16-value blocks with an E4M3 scale for each block and an outer FP32 scale. The Miles reference recipe combines NVFP4 and BF16 through tensor-level precision configuration. Activation scaling is computed per token. Gate and up projections are quantized together so the fused rollout GEMM uses the same outer weight scale. The trainer, checkpoint converter, and rollout kernels must use the same scaling contract. Hardware: B200, B300, GB200, or GB300. Run the Qwen3-30B-A3B reference recipe with paired rollout and training flags:

python scripts/run_qwen3_30b_a3b.py prepare \
  --hardware B200 \
  --rollout-nvfp4 \
  --train-nvfp4

python scripts/run_qwen3_30b_a3b.py execute \
  --hardware B200 \
  --rollout-nvfp4 \
  --train-nvfp4

The launcher selects per-token activation scaling, disables the incompatible 2D quantization, RHT, and stochastic-rounding paths, and loads the matching tensor-level precision configuration. Unmatched tensors stay in BF16, and rollout uses a BF16 KV cache. The training path uses:

--transformer-impl transformer_engine
--bf16
--fp4-format e2m1
--fp4-recipe nvfp4

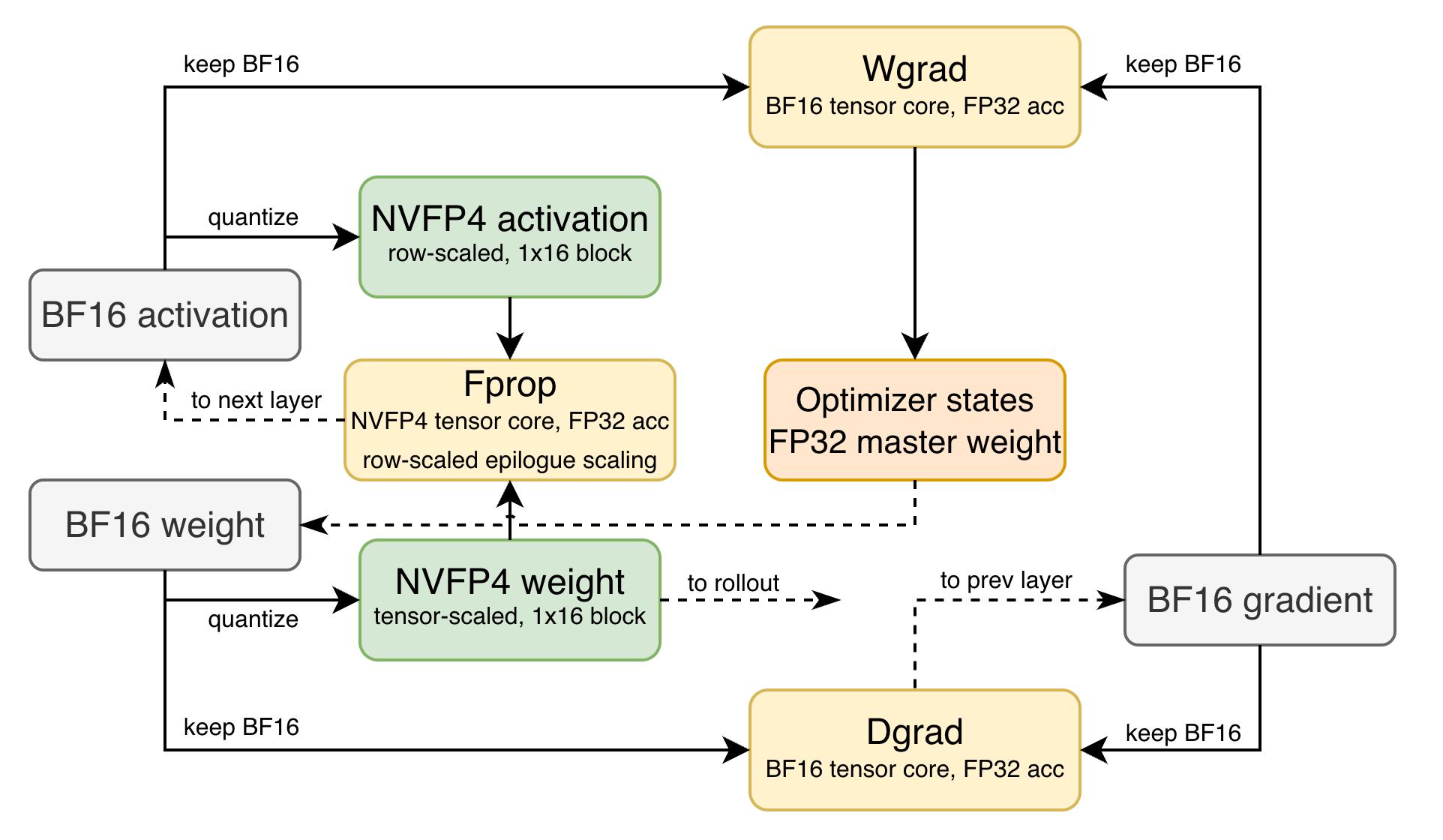

Note the --fp4- prefix: NVFP4 has its own format and recipe flags rather than reusing the --fp8- pair. The launcher also adds --optimizer-cpu-offload --overlap-cpu-optimizer-d2h-h2d --use-precision-aware-optimizer. The base NVFP4 recipe uses high-precision backward: the forward pass uses NVFP4 while the BF16 backward GEMMs consume the original BF16 operands.

The base recipe settings used by the launcher are:

NVTE_NVFP4_DISABLE_2D_QUANTIZATION=1
NVTE_NVFP4_DISABLE_RHT=1
NVTE_NVFP4_DISABLE_STOCHASTIC_ROUNDING=1
NVTE_NVFP4_ROW_SCALED_ACTIVATION=1
NVTE_BACKWARD_OVERRIDE=high_precision
NVTE_USE_FAST_MATH=0
SGLANG_FLASHINFER_NVFP4_PER_TOKEN_ACTIVATION=1
TRTLLM_DISABLE_FP4_QUANT_FAST_MATH=1
FLASHINFER_DISABLE_FP4_QUANT_FAST_MATH=1

Convert a checkpoint outside the launcher with the same NVTE_* recipe environment:

python tools/convert_hf_to_nvfp4.py \
  --model-dir /root/models/Qwen3-30B-A3B \
  --save-dir /root/models/Qwen3-30B-A3B-NVFP4

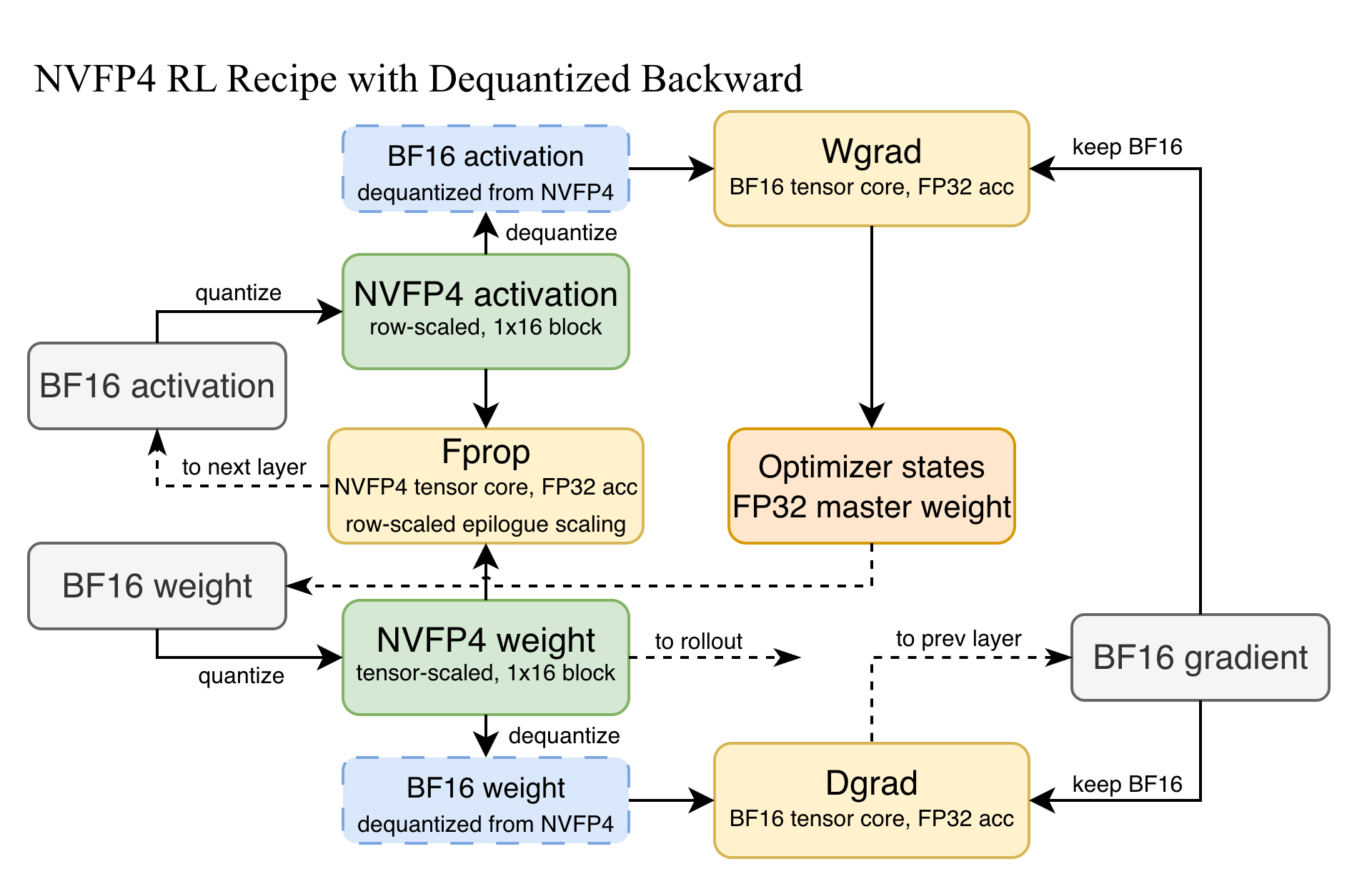

Advanced: dequantized backward

Dequantized backward keeps the backward GEMMs in BF16 but uses BF16 dequantizations of the NVFP4 operands produced during the forward pass. See the humans& discussion of gradient stability for the motivation and ablations.

Select this mode in the environment used to launch the job:

export NVTE_BACKWARD_OVERRIDE=dequantized

Advanced: four-over-six

Four Over Six: More Accurate NVFP4 Quantization with Adaptive Block Scaling optionally chooses, for each NVFP4 block, whether mapping the largest FP4 magnitude to 4 or 6 produces less quantization error. See the humans& four-over-six analysis for the RL recipe discussion. An example setting is:

export NVTE_NVFP4_4OVER6=all
export FLASHINFER_NVFP4_4OVER6=1
export NVTE_NVFP4_4OVER6_E4M3_USE_256=all
export FLASHINFER_NVFP4_4OVER6_E4M3_USE_256=1
export NVTE_NVFP4_4OVER6_ERR_MODE=MSE
export FLASHINFER_NVFP4_4OVER6_ERR_MODE=MSE
export NVTE_NVFP4_4OVER6_ERR_USE_FAST_MATH=0
export FLASHINFER_NVFP4_4OVER6_ERR_USE_FAST_MATH=0

Fine-grained BF16 exceptions

Miles supports per-layer precision configuration across checkpoint conversion, Megatron training, SGLang rollout, and live weight export.

Control	Purpose
`--num-layers-at-start-in-bf16`	Keep an initial layer range in BF16.
`--num-layers-at-end-in-bf16`	Keep a final layer range in BF16.
`--first-last-layers-bf16`	Apply the corresponding Megatron training rule.
`--extra-high-precision-layers-hf`	Exclude matching Hugging Face tensor names during conversion and rollout export.
`--extra-high-precision-layers-megatron`	Exclude matching Megatron tensor names during training and live export.
`--te-precision-config-file`	Select Transformer Engine recipes by Megatron tensor name.

Use equivalent Hugging Face and Megatron name matchers. Common exceptions include final transformer layers, shared experts, and MLA projections whose contraction axis does not match a one-dimensional scaling layout.

Hardware support

GPU	BF16	FP8 block-wise	MXFP8	NVFP4
NVIDIA H100 / H200	✅	✅	✗	✗
NVIDIA B200 / B300 / GB200 / GB300	✅	✅	✅	✅
NVIDIA A100	✅	✗	✗	✗
AMD MI300X / MI325 / MI350 / MI355X	✅	✗	✗	✗

When BF16 is enough

Dense models below ~30 B.
A100 hardware (no FP8 GEMM).
AMD hardware today.
Bring-up of a new model architecture, where clean BF16 numerics simplify debugging.
